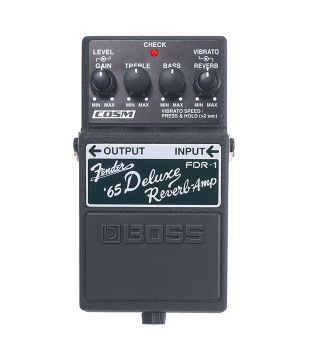

BOSS FDR-1 Guitar Pedals

Fender Deluxe Reverb Amp Pedal

The second in the new Legend Series is the FDR-1, based on the Fender 1965-era Deluxe Reverb — a coveted tube amp known for its natural touch-responsive and distinctive snappy overdriven sound. In conjunction with Fender, BOSS designed this stomp box to recreate the legendary tone of the 1965 Fender Deluxe Reverb amp. Features include the same controls on the original Deluxe Reverb; Level, Gain, Treble, Bass, Vibrato, and Reverb. The FDR-1 also functions perfectly as a “pre-gain pedal” placed before an already overdriven amp to add the tone character of the Deluxe Reverb.

Recreates the legendary tone of the 1965 Fender Deluxe Reverb guitar amp

Level, Gain, Treble, Bass, Vibrato, and Reverb controls

Road-tough BOSS metal construction

Perfect pre-gain pedal for adding or retaining Fender tone color

Nominal Input Level: -20 dBu

Input Impedance 1 M ohm

Nominal Output Level -20 dBu

Output Impedance 2.2 k ohms

Recommended Load Impedance 10 k ohms or greater

Controls Pedal switch, GAIN knob, LEVEL knob, TREBLE knob, BASS knob, VIBRATO knob, REVERB knob

Indicator CHECK indicator (Serves also as battery check indicator)

Connectors INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)

Power Supply DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)

Current Draw 40 mA (DC 9 V)

Expected battery life under continuous use Carbon: 2.7 hours, Alkaline: 9 hours * These figures will vary depending on the actual conditions of use.

Accessories Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Dry Battery 006P/9V (6LR61)

Options AC Adaptor (PSA series)

Size and Weight

Width (W): 73 mm

Depth (D): 129 mm

Height (H): 59 mm

Weight: 440 g
