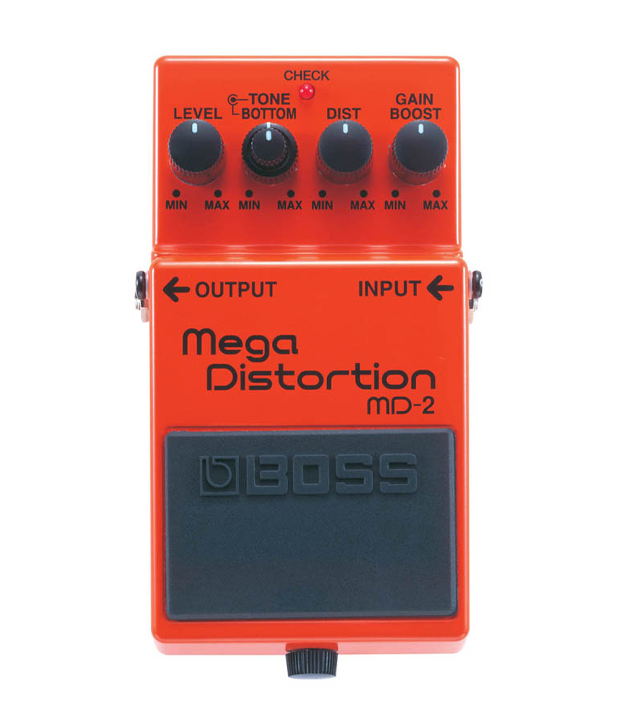

BOSS MD-2 Guitar Pedals

Extreme Distortion for Extreme Music

The MD-2 Mega Distortion takes the bottom-heavy distortion sounds heard in today's new-school metal and pushes it to the extreme. The secret is a special dual-stage distortion circuit with an added gain boost-plus new Bottom and Tone controls-for crushing distortion with massive low end. Take your distortion into the future with the MD-2.

Produces extreme, low-end distortion for modern metal and hard rock

Gain Boost circuit creates huge distortion and sustain regardless of level

New Bottom control for bottom-heavy distortion matched to 7-string guitars

Tone control adjusts balance between high and low frequencies

Nominal Input Level -20 dBu

Input Impedance 1 M ohms

Nominal Output Level -20 dBu

Output Impedance 1 k ohms

Equivalent Input Noise Level -110 dBu (IHF-A, Typ.)

Controls Pedal Switch, GAIN BOOST Knob, DIST (distortion) Knob, TONE Knob, BOTTOM Knob, LEVEL Knob

Indicator CHECK Indicator (Serves also as battery check indicator)

Connectors INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V)

Power Supply DC 9 V: Dry battery, AC Adaptor (PSA-series: optional)

Current Draw 18 mA (DC 9 V)

Accessory Dry battery (9 V type) S-006P/9 V (6F22/9 V)

Option AC Adaptor: PSA-series

Size and Weight

Width (W): 73 mm

Depth (D): 125 mm

Height (H): 55 mm

Weight: 410 g
