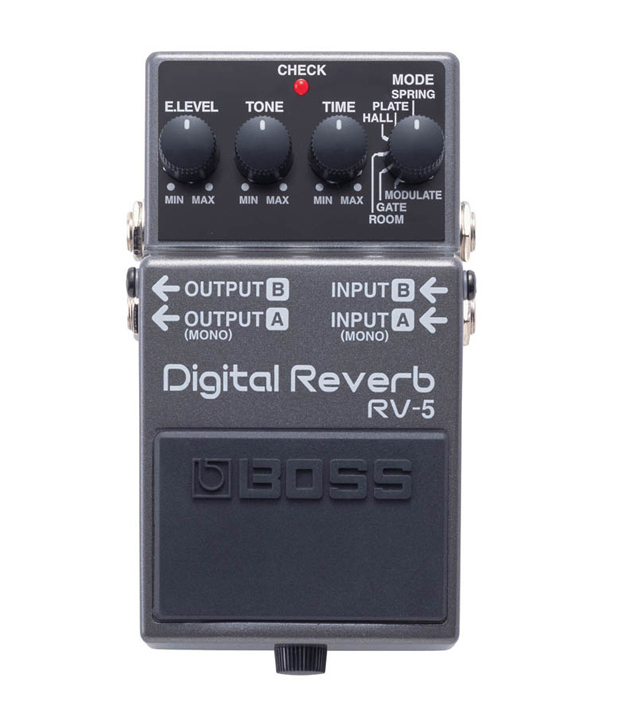

BOSS RV-5 Guitar Pedals

All-New Stereo Reverb Sounds

The RV-5 offers six of BOSS' best reverbs ever—in stereo. This makes it possible to connect after other pedals that feature stereo outputs. New reverbs include convincing spring reverb emulation and a high-quality gate reverb. More spacious reverb sounds can be had using the newly developed Modulate mode. And thanks to its dual inputs, the RV-5 even works for keyboard players.

Stereo input/output for compatibility with other stereo pedals

6 high-quality reverb modes on par with rackmount processors

First-of-its-kind Modulate mode detunes the reverb sound for added spaciousness

New spring reverb emulation offers realistic spring reverb sounds

New gate reverb taken from high-end Roland studio gear

Nominal Input Level -20 dBu

Input Impedance 1 M ohms

Nominal Output Level -20 dBu

Output Impedance 1 k ohms

Recommended Load Impedance 10 k ohms or greater

Residual Noise -93 dBu (IHF-A, Typ.): All knobs at center position

Controls Pedal Switch, E.LEVEL knob, TONE knob, TIME knob, MODE switch

Connectors INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, AC adaptor jack (DC 9 V)

Power Supply DC 9 V: Dry battery (9 V type), AC Adaptor

Current Draw 50 mA (DC 9 V)

Accessories Dry battery (9 V type) S-006P/9 V (6F22/9 V)

Owner's Manual

Options AC Adaptor PSA-Series

Size and Weight

Width (W): 73 mm

Depth (D): 129 mm

Height (H): 59 mm

Weight: 440 g

Please note, for warranty claims, brand visibility (sticker) should not be damaged.
