Description of Harman Kardon MX 150

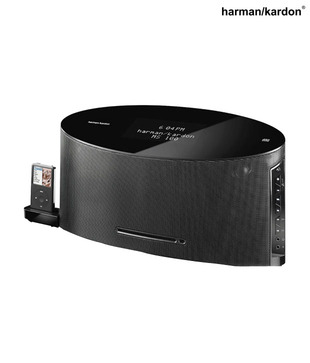

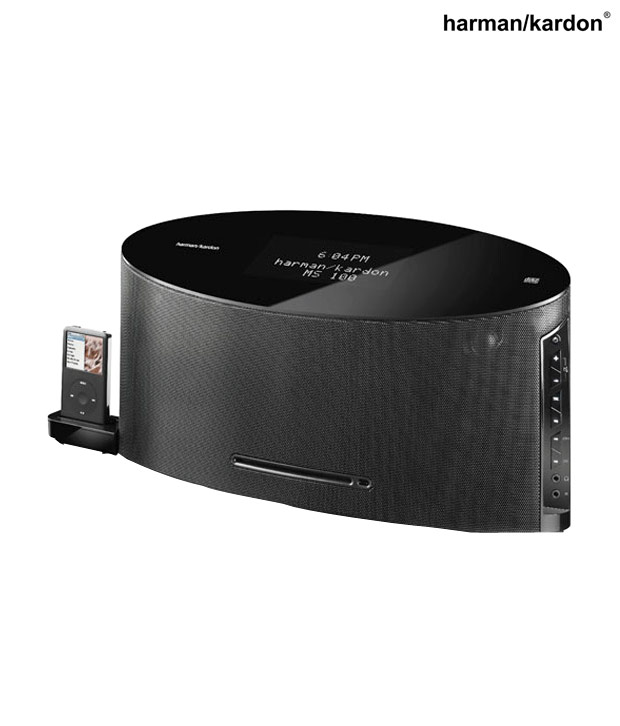

More than 50 years ago, Harman Kardon engineers developed the world’s first stereo receiver – a high-performance component that combined the functions of several systems, which had previously only been available separately. That tradition continues, in style, with the advent of the multitalented Harman Kardon MS 150 – a sophisticated music system and alarm clock that plays music from virtually any source. As a complete high-performance system with a CD player, FM tuner and universal docking station that’s designed to work with your iPod or iPhone device (not included), the MS 150 delivers high-fidelity sound from two 30-watt built-in bass-reflex loudspeakers in a compact, convenient and easy-to-use package. It also comes with auxiliary inputs for integration with other audio products – making the MS 150 a versatile music system that’s perfect for the home, office or wherever you like to take in your favourite music.
Technical Specifications of Harman Kardon MX 150
| Audio Specifications and Features |
| Stereo Power |
30 x 2 |
| Frequency Response |
20Hz � 20kHz, 0.5dB |
| THD |
0.07%, into 6 ohms, both channels driven |
| Power Bandwidth |
57Hz � 27kHz, � 6dB |
| Signal-to-noise Ratio (IHF-A) |
75 dB |
| Input Sensitivity/Impedance |
1kHz: 1.0V RMS, 1dB |
|
| Audio Connectivity Features |
| Digital Audio Input Rear (Coax / Optical) |
1/0 |
| Digital Audio Output (Coax / Optical) |
0/0 |
| Analog Audio Input (Rear) |
1 |
| Headphone Output |
Side |
| iPod Connectivity |
Docking station for iPod/iPhone playback and control included |
| Speaker Terminals |
Colour-coded binding posts |
|
| Data Connectivity Features |
| USB Port for Playback and Software Updates |
No |
|
| Left and Right Speaker Features/Specifications |
| Low-Frequency Transducer |
Two 125mm felted-paper drivers, ported |
| High-Frequency Transducer |
Two 19mm titaniumlaminate domes |
| Frequency Response |
80Hz � 20kHz (3dB) |
| Nominal Impedance |
6 ohms |
| Sensitivity (2.83V @1m) |
87 dB |
|
| FM Tuner Features |
| Usable Sensitivity (IHF) |
IHF 1.3V/13.2dBf |
| Signal-to-Noise Ratio (Mono/Stereo) |
70/65dB |
| Distortion (Mono/Stereo) |
0.15/0.3% |
| Stereo Separation @ 1kHz |
35dB, 100% deviation @ 65dBf |
| Selectivity |
1kHz, 100% Mod 0.15% (stereo) |
| Image Rejection |
80 dB |
| IF Rejection |
90 dB |
| Preset Stations |
6 |
| RDS |
PTY (program type), PS (program service), Text (radio text) |
| Frequency Range |
87 � 108.0MHz |
|
| General Specifications |
| Power Requirement |
DC 24V, 5A power supply; works for AC 230V/50Hz |
| Power Consumption (full power/idle) |
80W maximum (both channels driven) |
| Power Consumption (Standby) |
less than 1W standby |
| Dimensions: Satellites (H x W x D � Metric/English) |
252mm x 488mm x 194mm |
| Weight (Metric/English) |
8.2kg |
| Other |
CD Section: Disc compatibility: CD, CD-R, CD-RW, enhanced CD, MP3, WMA THD+N (20Hz � 20kHz): � 65dB Signal-to-noise ratio: � �A� WTG >100dBr � 22kHz filter > 100dBr |
|
